Symbol Status

Market Status​

By default the library will display the current market status as an icon within the legend for the main series of the chart.

Market Status Example

You can hide the market status by adding the display_market_status featureset to the disabled_features. Additionally, the market status visibility can be configured by the user within the Status line section of the chart settings dialog.

Additional Custom Symbol Status​

It is possible to provide an additional custom status for specific symbols by using the ICustomSymbolStatusApi API. The API can be accessed via the customSymbolStatus method on the widget.

danger

It is important that the symbol id provided to the API exactly matches the resolved id. You can get the id for a current symbol of a chart by using the symbol method.

The status assigned to a symbol will be visible on all charts displaying that symbol.

tip

The custom status for a symbol can be set at any time, whether the symbol has been loaded, displayed, or neither.

Example​

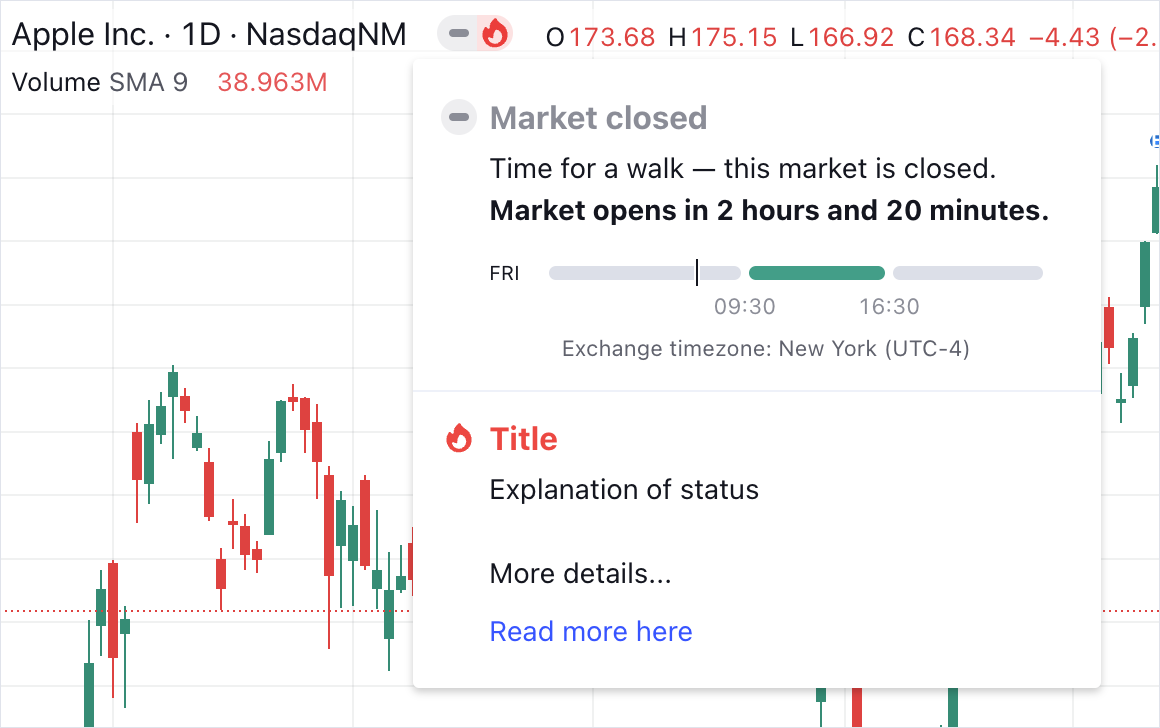

Custom Status Example

const myCustomIconSvgString = `<svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 20 20" fill="currentColor">
<path fill-rule="evenodd" d="M13.5 4.938a7 7 0 11-9.006 1.737c.202-.257.59-.218.793.039.278.352.594.672.943.954.332.269.786-.049.773-.476a5.977 5.977 0 01.572-2.759 6.026 6.026 0 012.486-2.665c.247-.14.55-.016.677.238A6.967 6.967 0 0013.5 4.938zM14 12a4 4 0 01-4 4c-1.913 0-3.52-1.398-3.91-3.182-.093-.429.44-.643.814-.413a4.043 4.043 0 001.601.564c.303.038.531-.24.51-.544a5.975 5.975 0 011.315-4.192.447.447 0 01.431-.16A4.001 4.001 0 0114 12z" clip-rule="evenodd" />
</svg>`;
// icon source: https://heroicons.com

widget
  .customSymbolStatus()
  .symbol('NASDAQNM:AAPL') // select the symbol
  .setVisible(true) // make the status visible
  .setColor('rgb(255, 40, 60)') // set the colour
  .setIcon(myCustomIconSvgString) // string for an svg icon, i.e. '<svg> ... </svg>'
  .setTooltip('Tooltip') // text to be displayed within the hover tooltip
  .setDropDownContent([
    // content to be displayed within the large pop-up tooltip
    {
      title: 'Title', // title to be displayed within the pop-up
      color: 'rgb(255, 60, 70)', // optional, if you want it to be different to above
      content: ['Explanation of status', '<br/><br/>', 'More details...'],
      action: {
        // Optional action to be displayed
        text: 'Read more here',
        tooltip: 'opens in a new window',
        onClick: () => {
          window.open('https://www.tradingview.com/', '_blank');
        },
      },
    },
  ]);
