Multi-Timeframe (MTF) Dashboard by RiTz

١٠ مارس ٢٠٢٢

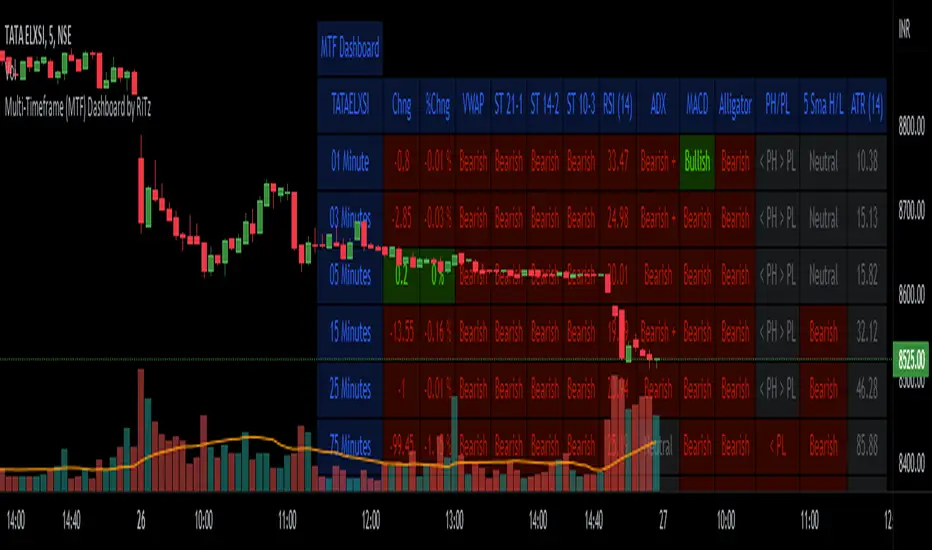

Multi-Timeframe Dashboard
Shows values of different Indiactors on Multiple-Timeframes for the selected script/symbol

VWAP : if LTP is trading above VWAP then Bullish else if LTP is trading below VWAP then Bearish.

ST(21,1) : if LTP is trading above Supertrend (21,1) then Bullish , else if LTP is trading below Supertrend (21,1) then Bearish.

ST(14,2) : if LTP is trading above Supertrend (14,2) then Bullish , else if LTP is trading below Supertrend (14,2) then Bearish.

ST(10,3) : if LTP is trading above Supertrend (10,3) then Bullish , else if LTP is trading below Supertrend (10,3) then Bearish.

RSI(14) : Shows value of RSI (14) for the current timeframe.

ADX : if ADX is > 75 and DI+ > DI- then "Bullish ++".
if ADX is < 75 but >50 and DI+ > DI- then "Bullish +".
if ADX is < 50 but > 25 and DI+ > DI- then "Bullish".
if ADX is above 75 and DI- > DI+ then "Bearish ++".
if ADX is < 75 but > 50 and DI- > DI+ then "Bearish+".
if ADX is < 50 but > 25 and DI- > DI+ then "Bearish".
if ADX is < 25 then "Neutral".

MACD : if MACD line is above Signal Line then "Bullish", else if MACD line is below Signal Line then "Bearish".

PH-PL : "< PH > PL" means LTP is trading between Previous Timeframes High(PH) & Previous Timeframes Low(PL) which indicates Rangebound-ness.
"> PH" means LTP is trading above Previous Timeframes High(PH) which indicates Bullish-ness.
"< PL" means LTP is trading below Previous Timeframes Low(PL) which indicates Bearish-ness.

Alligator : If Lips > Teeth > Jaw then Bullish.
If Lips < Teeth < Jaw then Bearish.
If Lips > Teeth and Teeth < Jaw then Neutral/Sleeping.
If Lips < Teeth and Teeth > Jaw then Neutral/Sleeping.

Settings :
Style settings :-

Dashboard Location: Location of the dashboard on the chart
Dashboard Size: Size of the dashboard on the chart
Bullish Cell Color: Select the color of cell whose value is showing Bullish-ness.
Bearish Cell Color: Select the color of cell whose value is showing Bearish-ness.
Neutral Cell Color: Select the color of cell whose value is showing Rangebound-ness.
Cell Transparency: Select Transparency of cell.

Column Settings :-
You can select which Indicators values should be displayed/hidden.

Timeframe Settings :-
You can select which timeframes values should be displayed/hidden.

Note :- I'm not a pro Developer/Coder , so if there are any mistakes or any suggestions for improvements in the code then do let me know!

Note :- Use in Live market , might show wrong values for timeframes other than current timeframe in closed market!!

١٩ مارس ٢٠٢٢

ملاحظات الأخبار

Update: used the new Pinescript feature for merging cells and showing tooltip for cells.

٤ مايو ٢٠٢٢

ملاحظات الأخبار

Disabled merge cell, as it was causing problems in displaying the table properly when indicators were turned off (caused gaps in column's , which didn't look good).

Added column to indicate whether the Price is Trading above 5 SMA High (Bullish), Below 5 SMA Low (Bearish) or in between 5 SMA High/Low (Neutral)
as far as I've observed,
when price is trading above 5 SMA High it is Bullish.
when price is trading below 5 SMA Low it is Bearish.
when price is trading between 5 SMA High-Low it is Neutral.
( If you don't like it, you can turn it off )

٢٦ سبتمبر ٢٠٢٢

ملاحظات الأخبار

Changelog :-
Added other Smaller Timeframes , but the default ones are the ones which are 1,3,5,15,25,75,125 which are factors of 375 (indian markets trading minutes in a day:- 9:15am to 3:30pm), so all the candles in those timeframes are full candles . unlike in 60min timeframe in which you get 6 full candles and remaining 15 min candle is also considered as hourly candle.

١٨ أكتوبر ٢٠٢٢

ملاحظات الأخبار

changelog : fixed transparency of some cells.

١٨ أكتوبر ٢٠٢٢

ملاحظات الأخبار

changelog :- fixed minor text transparency issue.

٢١ أكتوبر ٢٠٢٢

ملاحظات الأخبار

Changelog :- Updated the 5SMA H-L logic , bullish if price is trading above 20sma & 5sma(high) & bearish if price is trading below 20sma & 5sma(low) and neutral otherwise.

٢٢ مارس ٢٠٢٣

ملاحظات الأخبار

Changelog :- Fixed the Symbol name for futures contract , Thanks Pocwave for pointing it out.
